Weatherproof Industrial Telephone JWAT306

The Weatherproof Industrial Telephone Series is an industrial telephone designed for use in demanding public and industrial settings. It features a vandal-resistant, sand-cast aluminum housing with a weather-resistant metallic powder coating, ensuring durability and long-lasting reliability in harsh conditions. This series is perfect for environments such as mining sites, marine areas, tunnels, underground facilities, metro stations, railway platforms, highway roadsides, and other locations where superior waterproof performance is crucial.

Widely used in：

MARINE ENVIRONMENT

HIGHWAY SHOULDER

SUBWAY STATION

TUNNEL

UNDERGROUND FACILITY

RAILWAY PLATFORM

MINING SITE

OTHERS

KEY FEATURES

This industrial telephone is weatherproof, meeting IP66 to IP67 protection standards with aluminum alloy die-cast shell that offers high mechanical strength and excellent impact resistance. It is designed for wall mounting, allowing for simple installation. Multiple housings and colors are available, and spare parts are self-manufactured.

Available in SIP/VoIP and 4G versions, this standard analogue phone features a heavy-duty handset with a hearing aid compatible receiver and a noise-canceling microphone. Optional cords include a heavy-duty curly cord and an armored cord.

The phone has a stainless steel illuminated keypad with functional buttons that can be programmed for speed dial. It is powered by the phone line and connects via an RJ11 screw terminal pair cable. The ringing sound level exceeds 70 dB(A).

The product complies with CE, FCC, IP67, RoHS, and ISO9001 standards, ensuring quality and regulatory compliance.

Power Supply	Telephone Line Powered
Voltage	24–65 VDC
Standby Work Current	≤0.2A
Frequency Response	250～3000 Hz
Ringer Volume	≥80dB(A)
Corrosion Grade	WF1
Ambient Temperature	-40～+60℃
Atmospheric Pressure	80～110KPa
Relative Humidity	≤95%
Cable Gland	1 -PG11
Installation	Wall-mounted

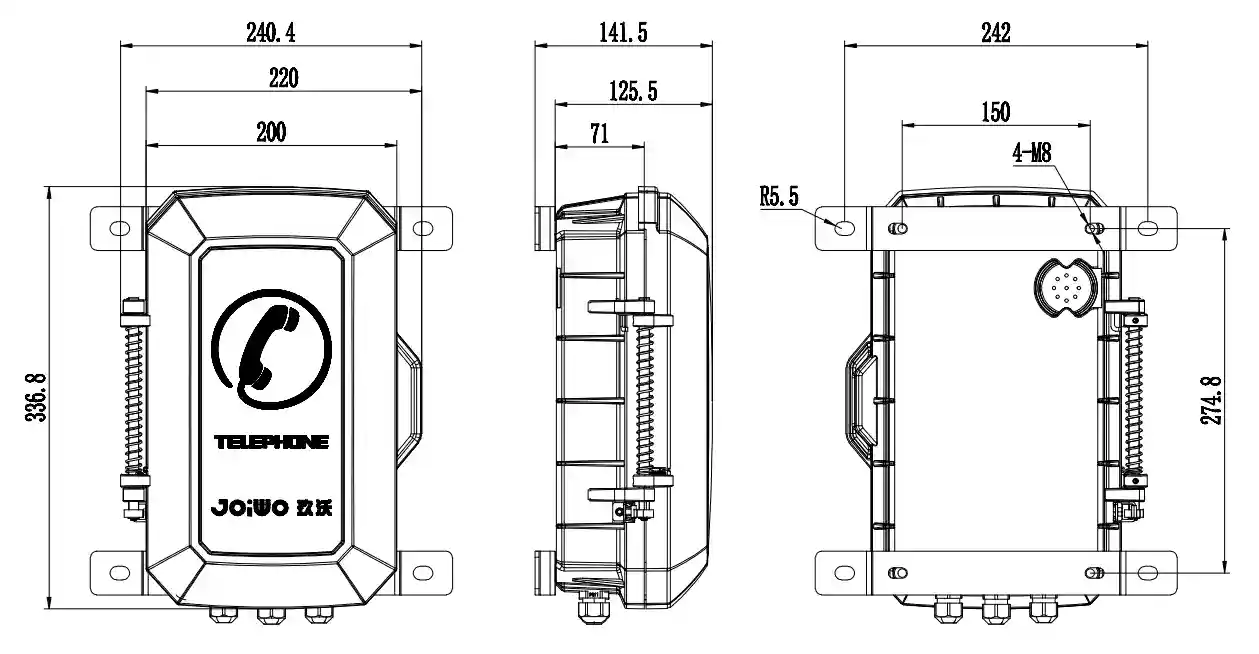

DIMENSIONS

Weatherproof outdoor telephone with rugged design for public use.

PACKAGE

Unit size:339*246*126mm

Carton Size: 470*290*210mm

Package materials: Pearl cotton

N.W:6.5KG

G.W:7KG

FREQUENTLY ASKED QUESTIONS

Q1. What is the waterproof rating of the JWAT306?

The JWAT306 is designed with an industrial-grade waterproof and dustproof rating (IP66/IP67), ensuring reliable operation in rain, humidity, splashing water, and harsh outdoor environments.

Q2. Do you have project experience? Do you have any client case studies? Has it been used in large-scale projects?

Yes, Joiwo products are sold in more than 70 countries and have been widely used in various international projects. These include railway tunnels, metro stations, municipal pipelines, port terminals, offshore platforms, power plants, chemical plants, and outdoor emergency communication systems.

Q3. Is the audio clear in noisy environments?

Yes. The handset uses a high-sensitivity receiver and noise-reduction microphone to ensure clear communication even in tunnels, factories, and high-noise areas.

Q4. Does the phone support SIP/VoIP systems?

Yes, the VoIP version supports SIP protocol and is compatible with major IP PBX systems such as Cisco, Avaya, and Asterisk.

Q5. Can the phone be customized?

Yes. Options Include but not limited to: -Custom colors -Company logo branding -Functinal buttons -Keypad layout -Speaker or hands-free function -Flashing beacon or additional indicators

Q6. Does the product require frequent maintenance?

No. The sealed structure and robust materials ensure long operating life with minimal maintenance.

Q7. How long is the delivery time?

-Samples: 3–7 days -Bulk orders: 15–25 days depending on order quantity

Q8. What is the warranty period?

Standard warranty is 2 years depending on the configuration. If any problems occur during the warranty period, we will provide free maintenance.

Joiwo Industrial Telephone JWAT306 is an essential communication device built for the world’s harshest environments. Engineered for mission-critical operations, it provides stable, rugged, and interference-free voice transmission for sectors like mining and tunnels, easily withstanding dust, humidity, and vibration. Its waterproof, corrosion-resistant, and anti-UV design further guarantees reliable performance in marine applications, offering a robust and trustworthy communication lifeline for enhanced safety and efficiency.

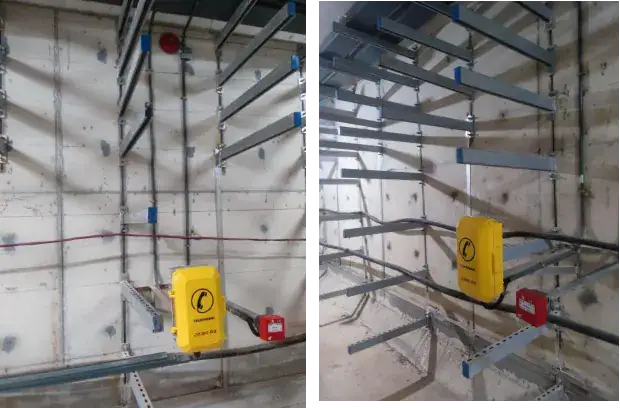

Weatherproof public telephone unit for outdoor use, mounted on a wall with metal framework.

Joiwo is committed to providing efficient and reliable emergency communication systems for key industries such as highways, tunnels, maritime affairs, and mining, and ensures user safety and operational continuity with high-quality products and system solutions.

Weatherproof Public Telephone JWAT306 with backlit keypad for outdoor use.
